AG NEOVO Tx-4302 Digital Signage Flat
|
|
AG NEOVO Tx-4302 Digital Signage Flat
-
Skærmstørrelse
42.5"
-
Opløsning
1920 x 1080
-
HD
Fuld HD
-
USB-C
0
-
DVI
1
-
DP
1
-
HDMI
1
-
VGA
1
-
Berøringsskærm
Ja
-
Højttalere
Ja
-
3D
Nej
-
Skærmform
Flad
-
Højdejustering
Nej
-
Drejbar
Nej
-
Pivot
Nej
-
Usage
Digital signage
|
TX-4302

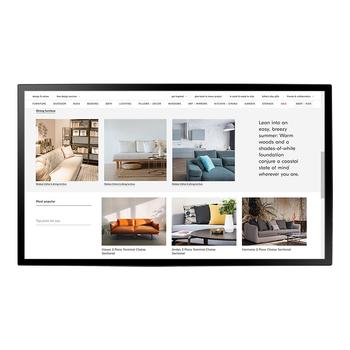

43-Inch Through-Glass Touch Screen Display
Features:
- 40-point projected capacitive touch technology
- Versatile connectivity: VGA, HDMI, and DisplayPort signal inputs
- Windows 10 ready – plug and play support for Windows 7/8/10
- Landscape and Portrait for flexible display orientation
- Designed and developed for continuous 24/7 operation
Specifications:
- Panel
- Panel Type VA
- Panel Size 42.5"
- Max. Resolution FHD 1920 x 1080
- Pixel Pitch 0.49 mm
- Brightness 400 cd/m²
- Contrast Ratio 4000:1
- Viewing Angle (H/V) 178°/178°
- Display Colour 16.7M
- Response Time 5 ms
- Surface Treatment Anti-Glare Treatment (Haze2%),3H Hard Coating
- Frequency
- Frequency (H) 30 kHz-73 KHz
- Frequency (V) 47 kHz-63 KHz
- Signal Input
- DisplayPort x 1
- HDMI 1.3 x 1
- DVI 24-Pin DVI-D
- VGA 15-Pin D-Sub x 1
- External Control
- RJ11 Yes
- Other Connectivity DC Output
- DC 5V 2.0A
- SDM Slot SDM-L
- Audio
- Audio In Stereo Audio Jack (3.5 mm)
- Internal Speakers 8W x 2
- Touch Screen
- Technology Projective Capacitive
- Positional Accuracy ± 2.5 mm
- Panel Interface USB (Type-B)/Service Port
- Multi-touch Plug & Play 40-point touch Windows® 7、8、10
- Single Touch Support by Driver Windows VISTA/XP/2000/CE/XP Embedded、Mac OS 10.10-10.14
- Multi-touch Support by Driver Linux 2.6.36 later/3.x.x/4.x.x/5.x.x、 Android 2.3 upwards
- Power
- Power Supply Internal
- Power Requirements AC 100-240V 50/60 Hz
- On Mode 42 W (On)
- Standby Mode < 1.2W
- Off Mode < 0.3W
- Operating Conditions
- Temperature 0°C-40°C (32°F-104°F)
- Humidity 20%-80% (non-condensing)
- Storage Conditions
- Temperature -20°C-60°C (-4°F-140°F)
- Humidity 20%-90% (non-condensing)
- Mounting
- VESA FPMPMI Yes (400 x 400 mm)
- Security
- Kensington Security Slot Yes
- Dimensions
- Product w/o Base (W x H x D) 983.2x 571.4 x 82.3 mm (38.7" x 22.5" x 3.2")
- Packaging (W x H x D) 1130.0 x 710.0x 190.0 mm (44.5" x 28.0" x 7.5")
- Weight
- Product w/o Base 19.5 kg ( 43.0 lb)
- Packaging 25.0 kg (55.1 lb)
- Regulation Approval
- Certifications & Compliance
- CE
- LVD
- WEEE
- RoHS
- REACH,UKCA
- EAC
- Accessories
- Supplied
- Audio Cable
- DisplayPort Cable
- HDMI Cable
- Power Cord
- Quick Start Guide
- USB Cable
- Optional Accessories
- Floor Mount
- FMC-02
- FMS-01
- FMS-02
- Video Wall Mount
- Desk Mount
- Wall Mount (Landscape only)
